# 2.6. Image manipulation and processing using NumPy and SciPy¶

Authors: Emmanuelle Gouillart, Gaël Varoquaux

This section addresses basic image manipulation and processing using the core scientific modules NumPy and SciPy. Some of the operations covered by this tutorial may be useful for other kinds of multidimensional array processing than image processing. In particular, the submodule `scipy.ndimage` provides functions operating on n-dimensional NumPy arrays.

For more advanced image processing and image-specific routines, see the tutorial scikit-image: image processing, dedicated to the `skimage` module.

Tools used in this tutorial:

• `numpy`: basic array manipulation

• `scipy`: `scipy.ndimage` submodule dedicated to image processing (n-dimensional images). See the documentation:

```>>> import scipy as sp
```

• Input/Output, displaying images

• Basic manipulations: cropping, flipping, rotating, …

• Image filtering: denoising, sharpening

• Image segmentation: labeling pixels corresponding to different objects

• Classification

• Feature extraction

• Registration

## 2.6.1. Opening and writing to image files¶

Writing an array to a file:

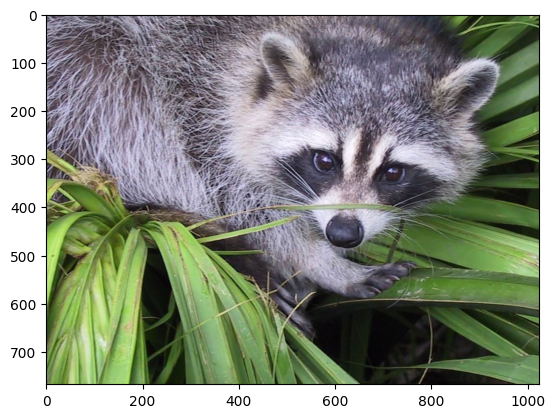

```import scipy as sp
import imageio.v3 as iio

f = sp.datasets.face()
iio.imwrite("face.png", f)  # uses the Image module (PIL)

import matplotlib.pyplot as plt

plt.imshow(f)
plt.show()
```

Creating a NumPy array from an image file:

```>>> import imageio.v3 as iio
>>> face = sp.datasets.face()
>>> iio.imwrite('face.png', face)  # First we need to create the PNG file

>>> type(face)
<class 'numpy.ndarray'>
>>> face.shape, face.dtype
((768, 1024, 3), dtype('uint8'))
```

dtype is uint8 for 8-bit images (0-255)

Opening raw files (camera, 3-D images)

```>>> face.tofile('face.raw') # Create raw file
>>> face_from_raw = np.fromfile('face.raw', dtype=np.uint8)
>>> face_from_raw.shape
(2359296,)
>>> face_from_raw.shape = (768, 1024, 3)
```

Need to know the shape and dtype of the image (how to separate data bytes).

For large data, use `np.memmap` for memory mapping:

```>>> face_memmap = np.memmap('face.raw', dtype=np.uint8, shape=(768, 1024, 3))
```

Working on a list of image files

```>>> rng = np.random.default_rng(27446968)
>>> for i in range(10):
...     im = rng.integers(0, 256, 10000, dtype=np.uint8).reshape((100, 100))
...     iio.imwrite(f'random_{i:02d}.png', im)
>>> from glob import glob
>>> filelist = glob('random*.png')
>>> filelist.sort()
```

## 2.6.2. Displaying images¶

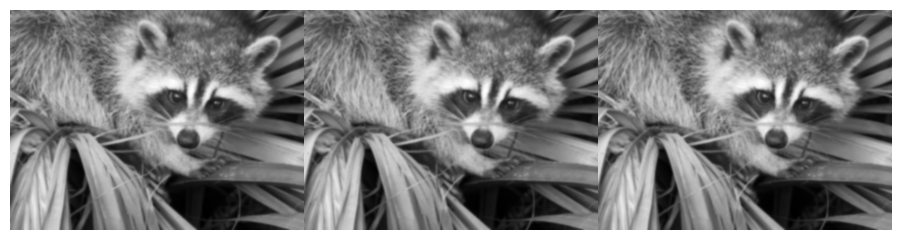

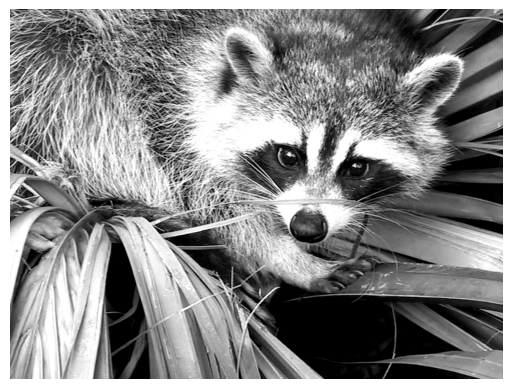

Use `matplotlib` and `imshow` to display an image inside a `matplotlib figure`:

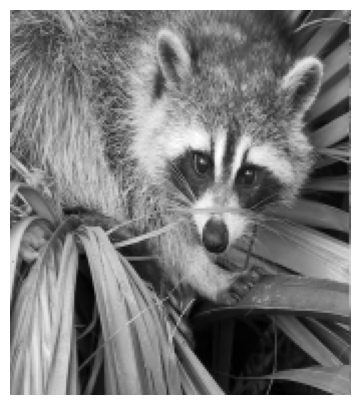

```>>> f = sp.datasets.face(gray=True)  # retrieve a grayscale image
>>> import matplotlib.pyplot as plt
>>> plt.imshow(f, cmap=plt.cm.gray)
<matplotlib.image.AxesImage object at 0x...>
```

Increase contrast by setting min and max values:

```>>> plt.imshow(f, cmap=plt.cm.gray, vmin=30, vmax=200)
<matplotlib.image.AxesImage object at 0x...>
>>> # Remove axes and ticks
>>> plt.axis('off')
(np.float64(-0.5), np.float64(1023.5), np.float64(767.5), np.float64(-0.5))
```

Draw contour lines:

```>>> plt.contour(f, [50, 200])
```

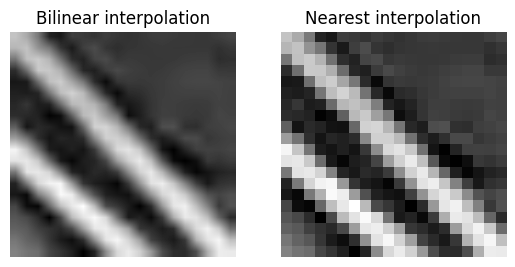

For smooth intensity variations, use `interpolation='bilinear'`. For fine inspection of intensity variations, use `interpolation='nearest'`:

```>>> plt.imshow(f[320:340, 510:530], cmap=plt.cm.gray, interpolation='bilinear')
<matplotlib.image.AxesImage object at 0x...>
>>> plt.imshow(f[320:340, 510:530], cmap=plt.cm.gray, interpolation='nearest')
<matplotlib.image.AxesImage object at 0x...>
```

More interpolation methods are in Matplotlib’s examples.

## 2.6.3. Basic manipulations¶

Images are arrays: use the whole `numpy` machinery.

```>>> face = sp.datasets.face(gray=True)
>>> face[0, 40]
np.uint8(127)
>>> # Slicing
>>> face[10:13, 20:23]
array([[141, 153, 145],
[133, 134, 125],
[ 96,  92,  94]], dtype=uint8)
>>> face[100:120] = 255
>>>
>>> lx, ly = face.shape
>>> X, Y = np.ogrid[0:lx, 0:ly]
>>> mask = (X - lx / 2) ** 2 + (Y - ly / 2) ** 2 > lx * ly / 4
>>> # Fancy indexing
>>> face[range(400), range(400)] = 255
```

### 2.6.3.1. Statistical information¶

```>>> face = sp.datasets.face(gray=True)
>>> face.mean()
np.float64(113.48026784261067)
>>> face.max(), face.min()
(np.uint8(250), np.uint8(0))
```

`np.histogram`

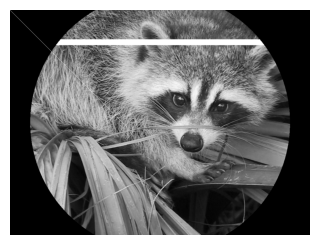

### 2.6.3.2. Geometrical transformations¶

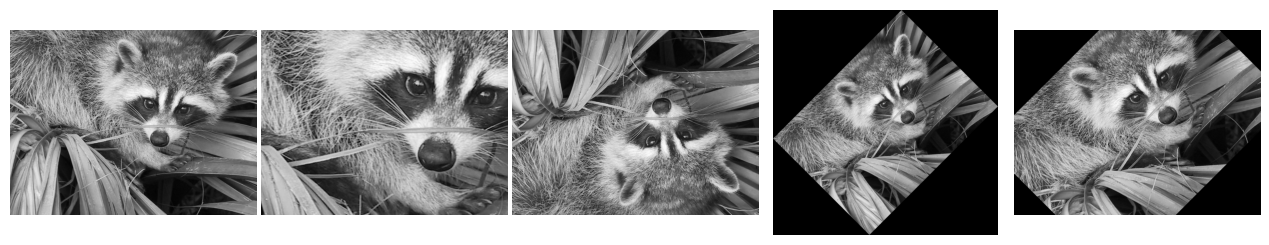

```>>> face = sp.datasets.face(gray=True)
>>> lx, ly = face.shape
>>> # Cropping
>>> crop_face = face[lx // 4: - lx // 4, ly // 4: - ly // 4]
>>> # up <-> down flip
>>> flip_ud_face = np.flipud(face)
>>> # rotation
>>> rotate_face = sp.ndimage.rotate(face, 45)
>>> rotate_face_noreshape = sp.ndimage.rotate(face, 45, reshape=False)
```

## 2.6.4. Image filtering¶

Local filters: replace the value of pixels by a function of the values of neighboring pixels.

Neighbourhood: square (choose size), disk, or more complicated structuring element.

### 2.6.4.1. Blurring/smoothing¶

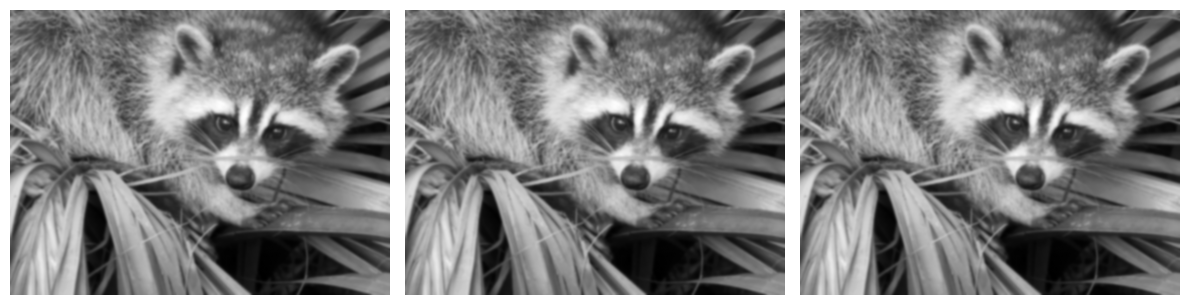

Gaussian filter from `scipy.ndimage`:

```>>> face = sp.datasets.face(gray=True)
>>> blurred_face = sp.ndimage.gaussian_filter(face, sigma=3)
>>> very_blurred = sp.ndimage.gaussian_filter(face, sigma=5)
```

Uniform filter

```>>> local_mean = sp.ndimage.uniform_filter(face, size=11)
```

### 2.6.4.2. Sharpening¶

Sharpen a blurred image:

```>>> face = sp.datasets.face(gray=True).astype(float)
>>> blurred_f = sp.ndimage.gaussian_filter(face, 3)
```

increase the weight of edges by adding an approximation of the Laplacian:

```>>> filter_blurred_f = sp.ndimage.gaussian_filter(blurred_f, 1)
>>> alpha = 30
>>> sharpened = blurred_f + alpha * (blurred_f - filter_blurred_f)
```

### 2.6.4.3. Denoising¶

Noisy face:

```>>> f = sp.datasets.face(gray=True)
>>> f = f[230:290, 220:320]
>>> rng = np.random.default_rng()
>>> noisy = f + 0.4 * f.std() * rng.random(f.shape)
```

A Gaussian filter smoothes the noise out… and the edges as well:

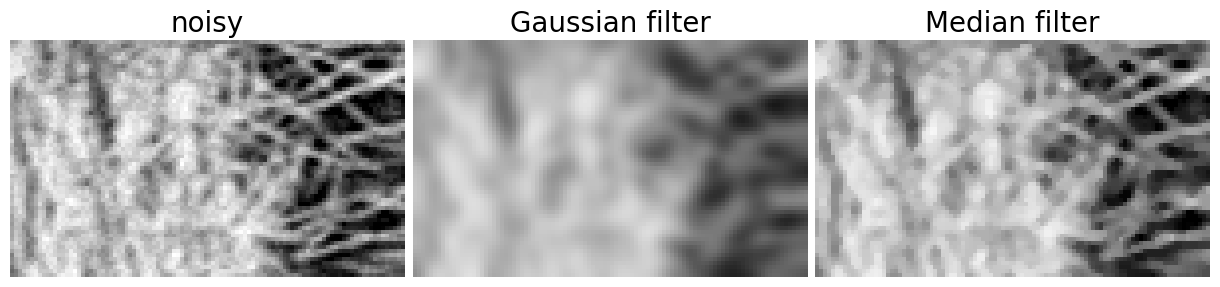

```>>> gauss_denoised = sp.ndimage.gaussian_filter(noisy, 2)
```

Most local linear isotropic filters blur the image (`scipy.ndimage.uniform_filter`)

A median filter preserves better the edges:

```>>> med_denoised = sp.ndimage.median_filter(noisy, 3)
```

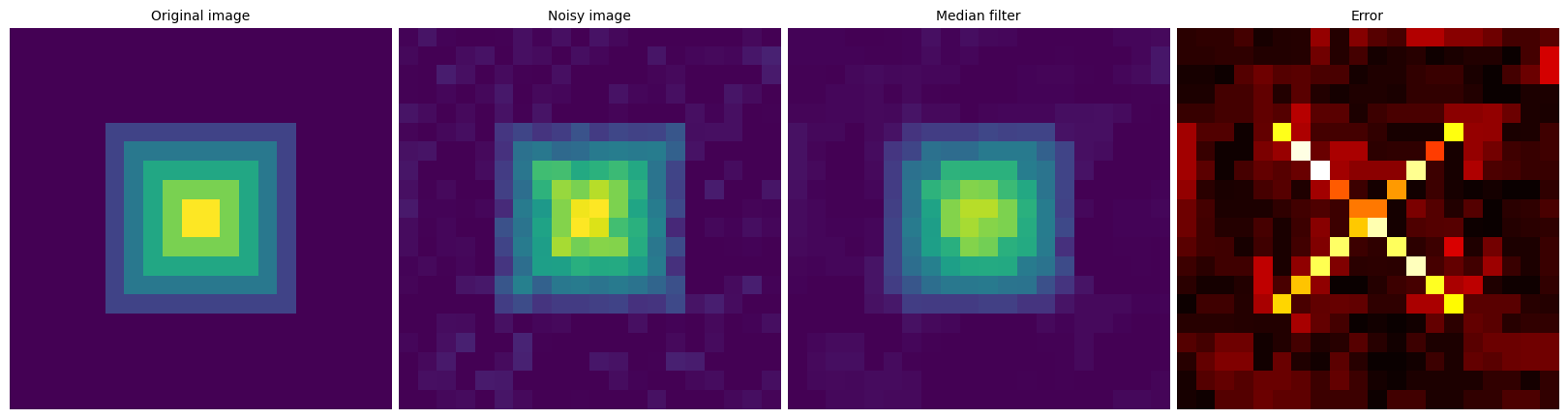

Median filter: better result for straight boundaries (low curvature):

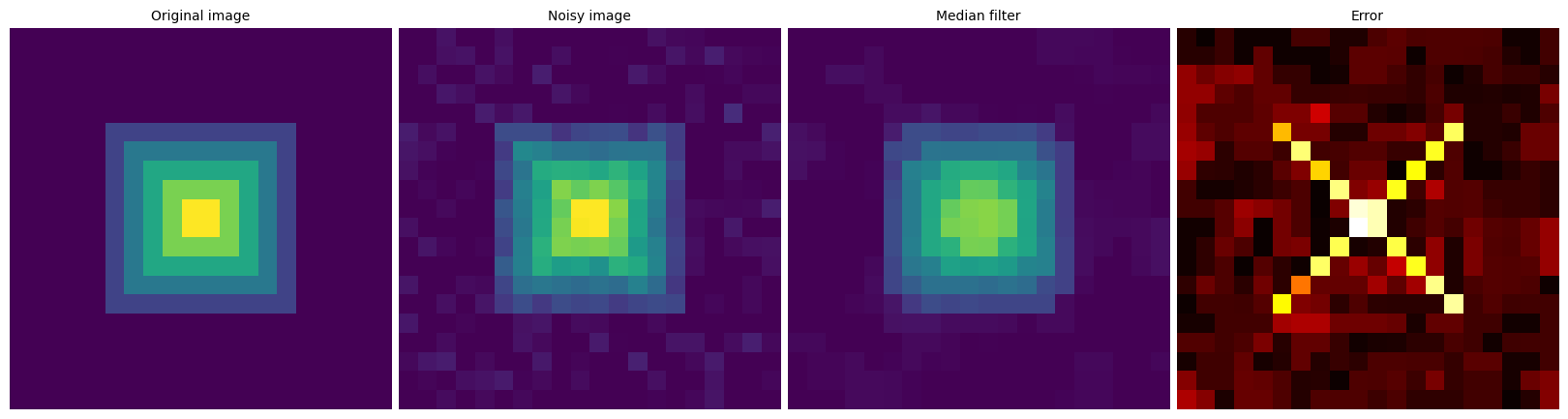

```>>> im = np.zeros((20, 20))
>>> im[5:-5, 5:-5] = 1
>>> im = sp.ndimage.distance_transform_bf(im)
>>> rng = np.random.default_rng()
>>> im_noise = im + 0.2 * rng.standard_normal(im.shape)
>>> im_med = sp.ndimage.median_filter(im_noise, 3)
```

Other rank filter: `scipy.ndimage.maximum_filter`, `scipy.ndimage.percentile_filter`

Other local non-linear filters: Wiener (`scipy.signal.wiener`), etc.

Non-local filters

More denoising filters are available in `skimage.denoising`, see the scikit-image: image processing tutorial.

### 2.6.4.4. Mathematical morphology¶

See wikipedia for a definition of mathematical morphology.

Probe an image with a simple shape (a structuring element), and modify this image according to how the shape locally fits or misses the image.

Structuring element:

```>>> el = sp.ndimage.generate_binary_structure(2, 1)
>>> el
array([[False,  True, False],
[ True,  True,  True],
[False,  True, False]])
>>> el.astype(int)
array([[0, 1, 0],
[1, 1, 1],
[0, 1, 0]])
```

Erosion = minimum filter. Replace the value of a pixel by the minimal value covered by the structuring element.:

```>>> a = np.zeros((7,7), dtype=int)
>>> a[1:6, 2:5] = 1
>>> a
array([[0, 0, 0, 0, 0, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 1, 1, 1, 0, 0],
[0, 0, 0, 0, 0, 0, 0]])
>>> sp.ndimage.binary_erosion(a).astype(a.dtype)
array([[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 1, 0, 0, 0],
[0, 0, 0, 1, 0, 0, 0],
[0, 0, 0, 1, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0]])
>>> # Erosion removes objects smaller than the structure
>>> sp.ndimage.binary_erosion(a, structure=np.ones((5,5))).astype(a.dtype)
array([[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0]])
```

Dilation: maximum filter:

```>>> a = np.zeros((5, 5))
>>> a[2, 2] = 1
>>> a
array([[0.,  0.,  0.,  0.,  0.],
[0.,  0.,  0.,  0.,  0.],
[0.,  0.,  1.,  0.,  0.],
[0.,  0.,  0.,  0.,  0.],
[0.,  0.,  0.,  0.,  0.]])
>>> sp.ndimage.binary_dilation(a).astype(a.dtype)
array([[0.,  0.,  0.,  0.,  0.],
[0.,  0.,  1.,  0.,  0.],
[0.,  1.,  1.,  1.,  0.],
[0.,  0.,  1.,  0.,  0.],
[0.,  0.,  0.,  0.,  0.]])
```

Also works for grey-valued images:

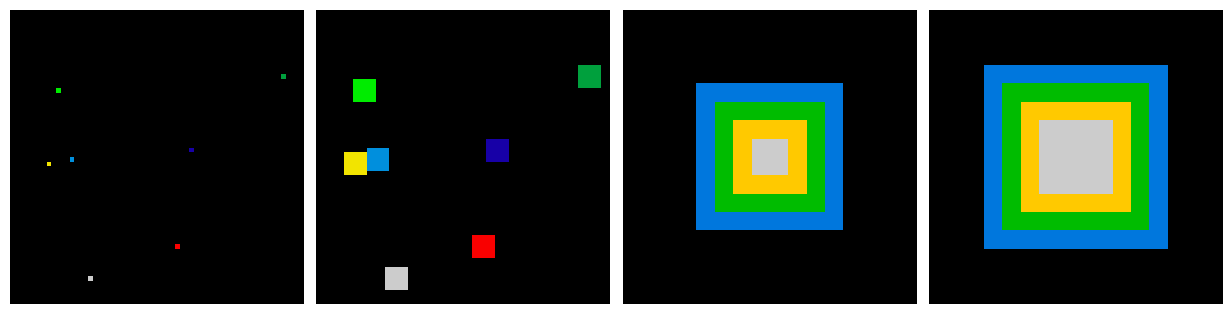

```>>> rng = np.random.default_rng(27446968)
>>> im = np.zeros((64, 64))
>>> x, y = (63*rng.random((2, 8))).astype(int)
>>> im[x, y] = np.arange(8)

>>> bigger_points = sp.ndimage.grey_dilation(im, size=(5, 5), structure=np.ones((5, 5)))

>>> square = np.zeros((16, 16))
>>> square[4:-4, 4:-4] = 1
>>> dist = sp.ndimage.distance_transform_bf(square)
>>> dilate_dist = sp.ndimage.grey_dilation(dist, size=(3, 3), \
...         structure=np.ones((3, 3)))
```

Opening: erosion + dilation:

```>>> a = np.zeros((5,5), dtype=int)
>>> a[1:4, 1:4] = 1; a[4, 4] = 1
>>> a
array([[0, 0, 0, 0, 0],
[0, 1, 1, 1, 0],
[0, 1, 1, 1, 0],
[0, 1, 1, 1, 0],
[0, 0, 0, 0, 1]])
>>> # Opening removes small objects
>>> sp.ndimage.binary_opening(a, structure=np.ones((3,3))).astype(int)
array([[0, 0, 0, 0, 0],
[0, 1, 1, 1, 0],
[0, 1, 1, 1, 0],
[0, 1, 1, 1, 0],
[0, 0, 0, 0, 0]])
>>> # Opening can also smooth corners
>>> sp.ndimage.binary_opening(a).astype(int)
array([[0, 0, 0, 0, 0],
[0, 0, 1, 0, 0],
[0, 1, 1, 1, 0],
[0, 0, 1, 0, 0],
[0, 0, 0, 0, 0]])
```

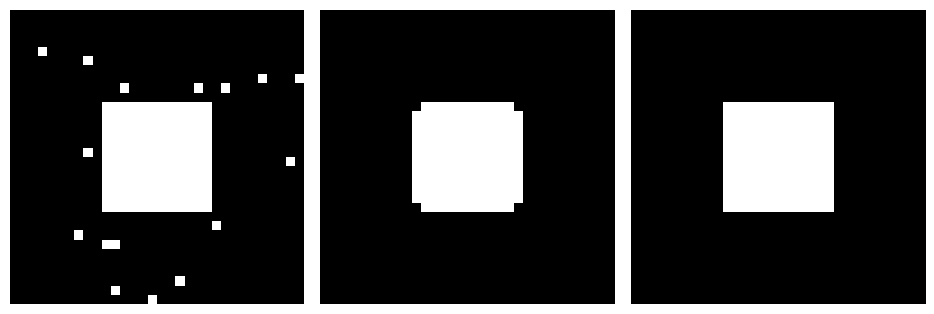

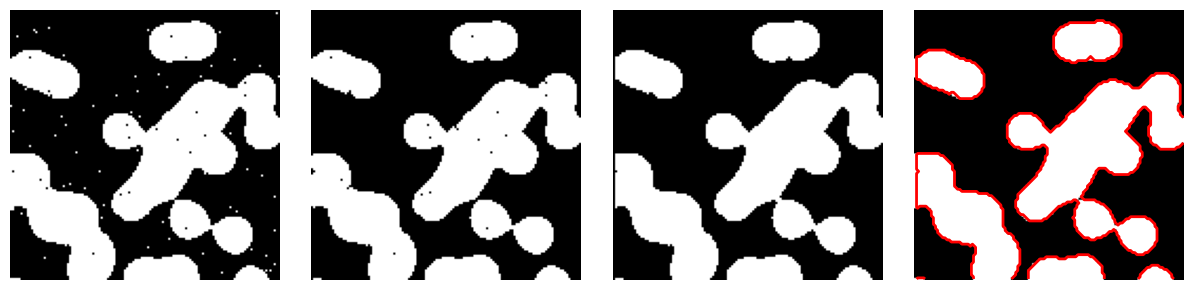

Application: remove noise:

```>>> square = np.zeros((32, 32))
>>> square[10:-10, 10:-10] = 1
>>> rng = np.random.default_rng(27446968)
>>> x, y = (32*rng.random((2, 20))).astype(int)
>>> square[x, y] = 1

>>> open_square = sp.ndimage.binary_opening(square)

>>> eroded_square = sp.ndimage.binary_erosion(square)
```

Closing: dilation + erosion

Many other mathematical morphology operations: hit and miss transform, tophat, etc.

## 2.6.5. Feature extraction¶

### 2.6.5.1. Edge detection¶

Synthetic data:

```>>> im = np.zeros((256, 256))
>>> im[64:-64, 64:-64] = 1
>>>
>>> im = sp.ndimage.rotate(im, 15, mode='constant')
>>> im = sp.ndimage.gaussian_filter(im, 8)
```

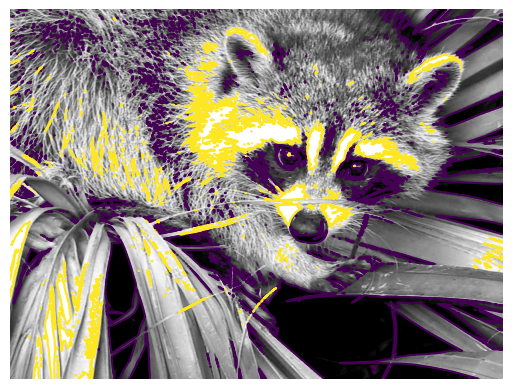

Use a gradient operator (Sobel) to find high intensity variations:

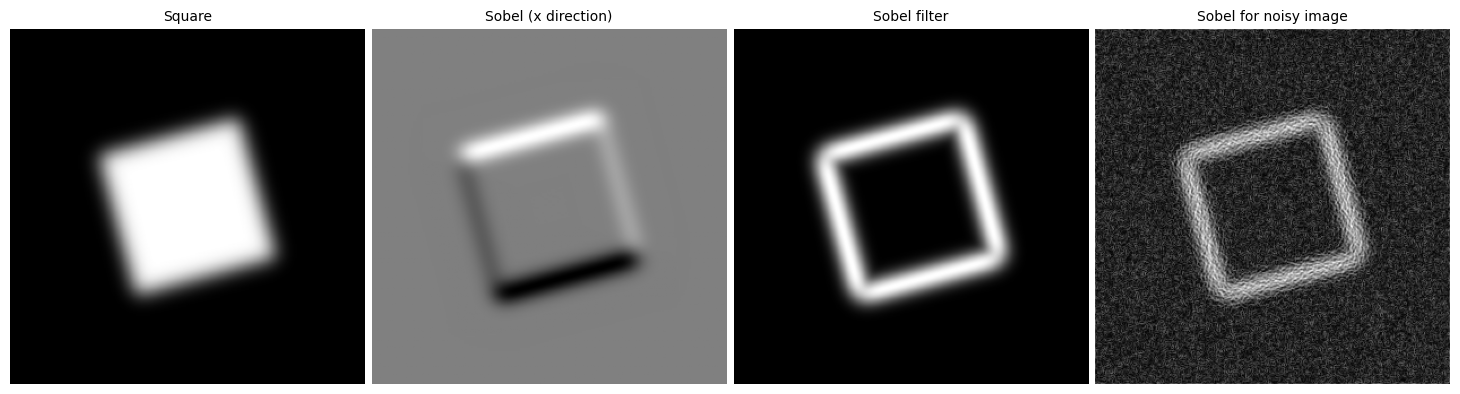

```>>> sx = sp.ndimage.sobel(im, axis=0, mode='constant')
>>> sy = sp.ndimage.sobel(im, axis=1, mode='constant')
>>> sob = np.hypot(sx, sy)
```

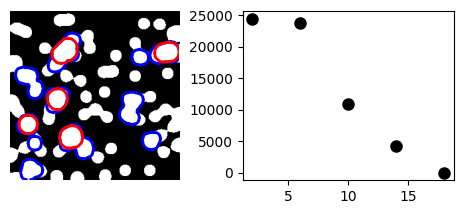

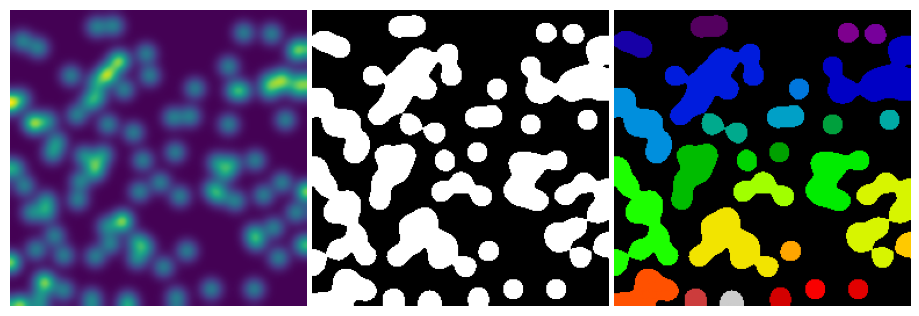

### 2.6.5.2. Segmentation¶

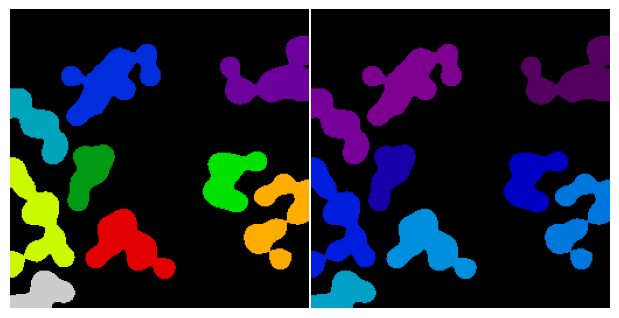

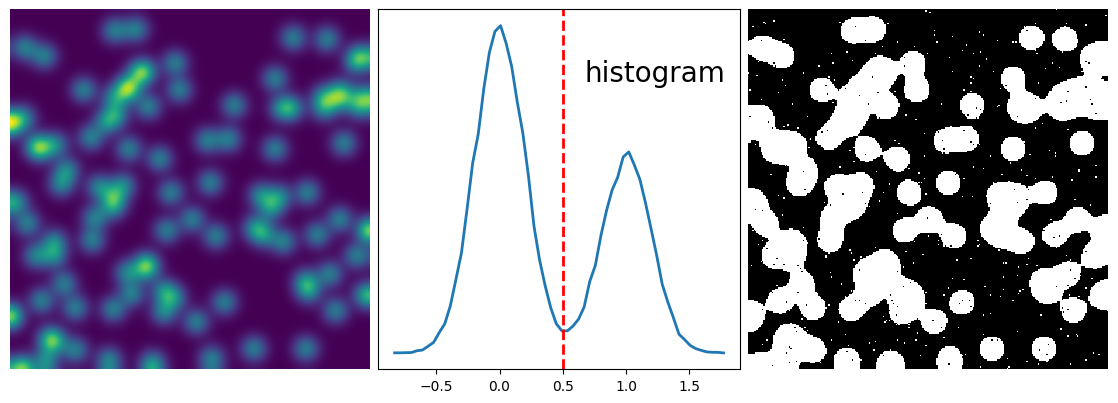

• Histogram-based segmentation (no spatial information)

```>>> n = 10
>>> l = 256
>>> im = np.zeros((l, l))
>>> rng = np.random.default_rng(27446968)
>>> points = l*rng.random((2, n**2))
>>> im[(points[0]).astype(int), (points[1]).astype(int)] = 1
>>> im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))

>>> mask = (im > im.mean()).astype(float)
>>> mask += 0.1 * im

>>> hist, bin_edges = np.histogram(img, bins=60)
>>> bin_centers = 0.5*(bin_edges[:-1] + bin_edges[1:])

>>> binary_img = img > 0.5
```

Use mathematical morphology to clean up the result:

```>>> # Remove small white regions
>>> open_img = sp.ndimage.binary_opening(binary_img)
>>> # Remove small black hole
>>> close_img = sp.ndimage.binary_closing(open_img)
```

More advanced segmentation algorithms are found in the `scikit-image`: see scikit-image: image processing.

Other Scientific Packages provide algorithms that can be useful for image processing. In this example, we use the spectral clustering function of the `scikit-learn` in order to segment glued objects.

```>>> from sklearn.feature_extraction import image
>>> from sklearn.cluster import spectral_clustering

>>> l = 100
>>> x, y = np.indices((l, l))

>>> center1 = (28, 24)
>>> center2 = (40, 50)
>>> center3 = (67, 58)
>>> center4 = (24, 70)

>>> circle1 = (x - center1[0])**2 + (y - center1[1])**2 < radius1**2
>>> circle2 = (x - center2[0])**2 + (y - center2[1])**2 < radius2**2
>>> circle3 = (x - center3[0])**2 + (y - center3[1])**2 < radius3**2
>>> circle4 = (x - center4[0])**2 + (y - center4[1])**2 < radius4**2

>>> # 4 circles
>>> img = circle1 + circle2 + circle3 + circle4
>>> img = img.astype(float)

>>> rng = np.random.default_rng()
>>> img += 1 + 0.2*rng.standard_normal(img.shape)

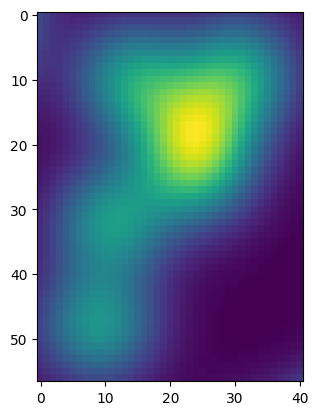

>>> # Convert the image into a graph with the value of the gradient on
>>> # the edges.

>>> # Take a decreasing function of the gradient: we take it weakly
>>> # dependent from the gradient the segmentation is close to a voronoi
>>> graph.data = np.exp(-graph.data/graph.data.std())

>>> labels = spectral_clustering(graph, n_clusters=4, eigen_solver='arpack')
```

## 2.6.6. Measuring objects properties: `scipy.ndimage.measurements`¶

Synthetic data:

```>>> n = 10
>>> l = 256
>>> im = np.zeros((l, l))
>>> rng = np.random.default_rng(27446968)
>>> points = l * rng.random((2, n**2))
>>> im[(points[0]).astype(int), (points[1]).astype(int)] = 1
>>> im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))
>>> mask = im > im.mean()
```
• Analysis of connected components

Label connected components: `scipy.dimage.label`:

```>>> label_im, nb_labels = sp.ndimage.label(mask)
>>> nb_labels # how many regions?
28
>>> plt.imshow(label_im)
<matplotlib.image.AxesImage object at 0x...>
```

Compute size, mean_value, etc. of each region:

```>>> sizes = sp.ndimage.sum(mask, label_im, range(nb_labels + 1))
>>> mean_vals = sp.ndimage.sum(im, label_im, range(1, nb_labels + 1))
```

Clean up small connect components:

```>>> mask_size = sizes < 1000
>>> remove_pixel.shape
(256, 256)
>>> label_im[remove_pixel] = 0
>>> plt.imshow(label_im)
<matplotlib.image.AxesImage object at 0x...>
```

Now reassign labels with `np.searchsorted`:

```>>> labels = np.unique(label_im)
>>> label_im = np.searchsorted(labels, label_im)
```

Find region of interest enclosing object:

```>>> slice_x, slice_y = sp.ndimage.find_objects(label_im)[3]
>>> roi = im[slice_x, slice_y]
>>> plt.imshow(roi)
<matplotlib.image.AxesImage object at 0x...>
```

Other spatial measures: `scipy.ndimage.center_of_mass`, `scipy.ndimage.maximum_position`, etc.

Can be used outside the limited scope of segmentation applications.

Example: block mean:

```>>> f = sp.datasets.face(gray=True)
>>> sx, sy = f.shape
>>> X, Y = np.ogrid[0:sx, 0:sy]
>>> regions = (sy//6) * (X//4) + (Y//6)  # note that we use broadcasting
>>> block_mean = sp.ndimage.mean(f, labels=regions, index=np.arange(1,
...     regions.max() +1))
>>> block_mean.shape = (sx // 4, sy // 6)
```

When regions are regular blocks, it is more efficient to use stride tricks (Example: fake dimensions with strides).

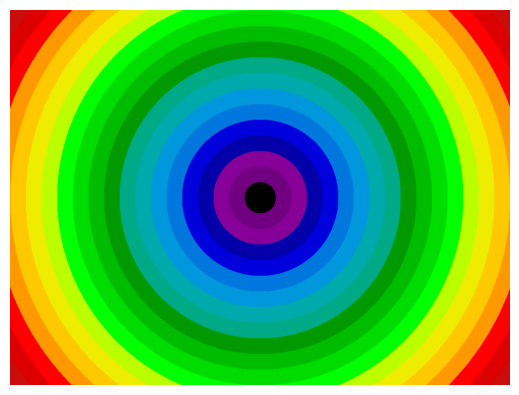

```>>> sx, sy = f.shape
>>> X, Y = np.ogrid[0:sx, 0:sy]
>>> r = np.hypot(X - sx/2, Y - sy/2)
>>> rbin = (20* r/r.max()).astype(int)
>>> radial_mean = sp.ndimage.mean(f, labels=rbin, index=np.arange(1, rbin.max() +1))
```
• Other measures

Correlation function, Fourier/wavelet spectrum, etc.

One example with mathematical morphology: granulometry

```>>> def disk_structure(n):
...     struct = np.zeros((2 * n + 1, 2 * n + 1))
...     x, y = np.indices((2 * n + 1, 2 * n + 1))
...     mask = (x - n)**2 + (y - n)**2 <= n**2
...     return struct.astype(bool)
...
>>>
>>> def granulometry(data, sizes=None):
...     s = max(data.shape)
...     if sizes is None:
...         sizes = range(1, s/2, 2)
...     granulo = [sp.ndimage.binary_opening(data, \
...         structure=disk_structure(n)).sum() for n in sizes]
...     return granulo
...
>>>
>>> rng = np.random.default_rng(27446968)
>>> n = 10
>>> l = 256
>>> im = np.zeros((l, l))
>>> points = l*rng.random((2, n**2))
>>> im[(points[0]).astype(int), (points[1]).astype(int)] = 1
>>> im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))
>>>
>>> mask = im > im.mean()
>>>
>>> granulo = granulometry(mask, sizes=np.arange(2, 19, 4))
```

## 2.6.8. Examples for the image processing chapter¶

Displaying a Raccoon Face

Displaying a Raccoon Face

Image interpolation

Image interpolation

Plot the block mean of an image

Plot the block mean of an image

Image manipulation and NumPy arrays

Image manipulation and NumPy arrays

Display a Raccoon Face

Display a Raccoon Face

Image sharpening

Image sharpening

Blurring of images

Blurring of images

Synthetic data

Synthetic data

Opening, erosion, and propagation

Opening, erosion, and propagation

Image denoising

Image denoising

Geometrical transformations

Geometrical transformations

Find the bounding box of an object

Find the bounding box of an object

Measurements from images

Measurements from images

Total Variation denoising

Total Variation denoising

Denoising an image with the median filter

Denoising an image with the median filter

Histogram segmentation

Histogram segmentation

Greyscale dilation

Greyscale dilation

Finding edges with Sobel filters

Finding edges with Sobel filters

Cleaning segmentation with mathematical morphology

Cleaning segmentation with mathematical morphology

Segmentation with Gaussian mixture models

Segmentation with Gaussian mixture models

Watershed segmentation

Watershed segmentation

Granulometry

Granulometry

Segmentation with spectral clustering

Segmentation with spectral clustering

Gallery generated by Sphinx-Gallery
